Error code F5 E1 on Whirlpool and Maytag washers signals a Lid Lock Assembly Fault. When you press START, the control board energizes the internal lid lock solenoid to drive a locking bolt into the lid strike. If the internal micro-switch or magnetic reed switch fails to confirm that the bolt is fully seated after 3 rapid attempts (click-click-click), the washer aborts the cycle and refuses to fill.
A locked lid with clothes trapped inside is a frequent emergency. Below is the verified technician protocol for unlocking the lid manually and clearing the error.
Emergency: How to Unlock the Lid Manually (Clothes Trapped)
Unplug the washer power cord before sliding any tool under the top console to avoid electric shock from the live harness terminals.
- Unplug the washer from the wall outlet.
- Slide a thin putty knife approximately 6.5 inches from the left and right front corners under the lid seam to release the metal top-panel retaining clips.
- Gently hinge the top panel backward.

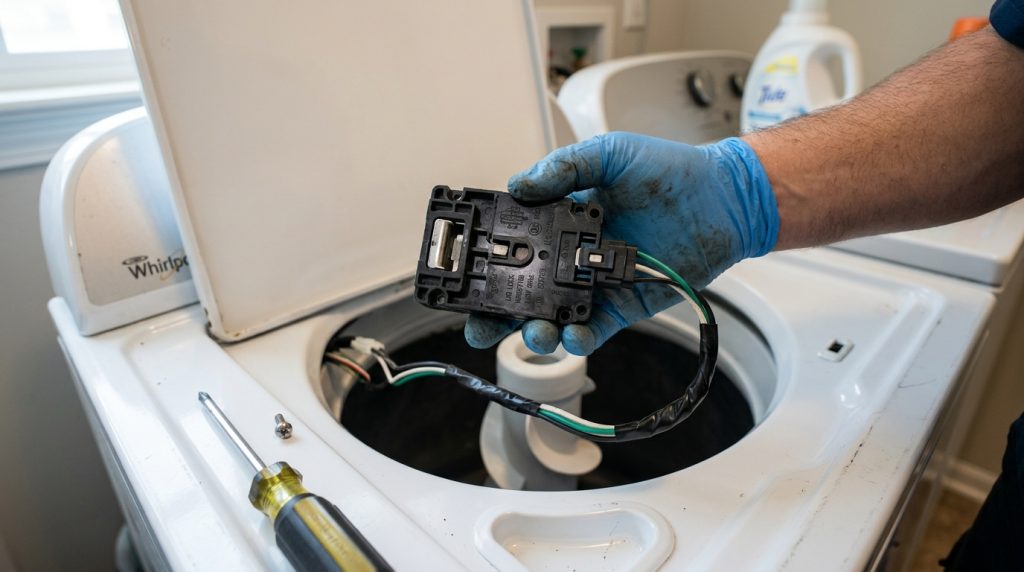

- Locate the black lid lock body attached beneath the top panel rim.
- On the underside of the switch body, reach for the small plastic manual release slider tab and slide it rearward (toward the back of the washer).
- The latch bolt will retract immediately, allowing you to lift the lid and retrieve laundry.
Step 1: The 6-Click Console Reset Trick
Often, a temporary mechanical misalignment trips the control board’s safety lockout. To force the micro-controller to re-interrogate the switch:
- Unplug the machine for 2 minutes.
- Plug the cord back in.
- While the console is dark in Standby mode, lift and drop the lid firmly 6 times within 12 seconds.
- Press START.
Step 2: Testing the Lid Lock with a Multimeter
Disconnect harness connector J15 from the main electronic control board (or test directly at the 4-pin lid switch harness plug).
| Terminal Pins | Component Tested | Expected Resistance |
|---|---|---|
| Pins 3 to 4 (White to Blue) | Lid Lock Solenoid Coil | 85 Ω to 125 Ω (Normal) |
| Pins 1 to 2 (Yellow to White) | Lid Closed Switch (Lid Down) | 0.0 Ω (Continuity) |
| Pins 1 to 2 (Yellow to White) | Lid Open Switch (Lid Raised) | Infinite (O.L.) |
If the solenoid resistance reads 0 Ohms or Infinite, the lock solenoid is blown and the assembly must be replaced.
OEM Replacement Part Information
Whirlpool / Maytag Lid Lock Switch Assembly
OEM Part Number: W10838613 (Replaces W10404050, W10619006, W10837741)
Compatibility: Whirlpool Cabrio WTW7300, WTW8000, Maytag Bravos MVWB750, Commercial Technology MCT series.
Installation Time: 15 minutes using a putty knife and 1/4″ nut driver.
Connected Diagnostic Procedures & Next Steps
Lid lock failures cut power to the drive motor and shift actuator. After verifying the lock latch, consult these connected diagnostic procedures:
Frequently Asked Questions
Why does the washer click 3 times before displaying F5 E1?
The control board attempts to energize the solenoid 3 consecutive times to push the lock bolt. If the strike is misaligned or the internal sensor contacts are worn, it aborts after the 3rd attempt to prevent solenoid overheating.
Can I bypass the lid lock switch with a jumper wire?
No. Modern Whirlpool machines use microprocessors that monitor dynamic pulse feedback between the lock solenoid and the reed switch. A static jumper wire will trigger a persistent F5 E3 error (Lid Switch Open While Locked) and halt all cycles permanently.
